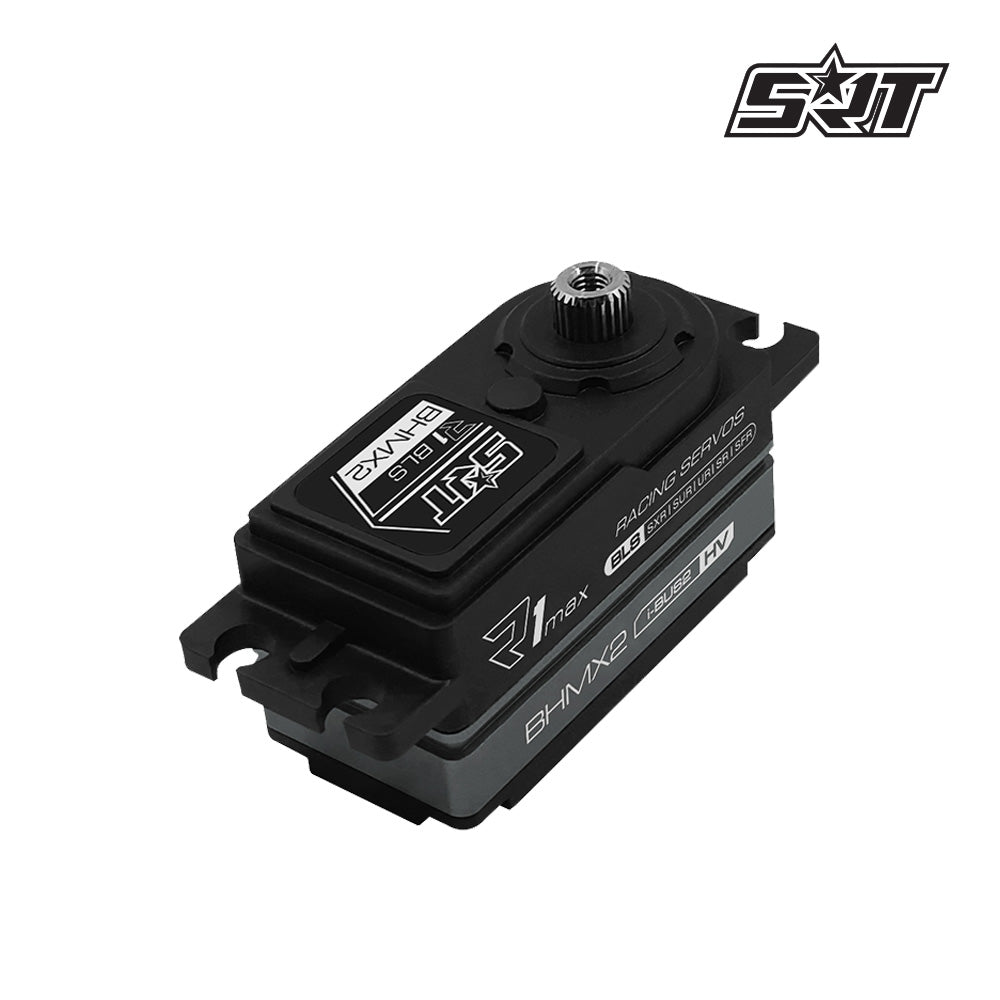

Introducing SRT's new ultra low profile servo, the BHMX2 is ideal for those seeking the best servo for their 1/10th on-road or off-road race cars. It features a super low profile design, making it shorter than most other low profile servos!

An aluminium mid-case ensures the BHMX2 keeps its cool under the hardest racing conditions. While a high strength polymer top case keeps weight down to a bare minimum, so you can balance your car the way you want!

Like its latest stablemates, the BHMX2 adds support for i-BUS2 protocol to support Flysky's Noble 4+ and Noble 4+ Pro radios.

KEY FEATURES

• Ideal for 1/10 on road and 1/8 nitro onroad applications
• Incredible efficiency and low power consumption
• Aluminum mid-case for excellent heat dissipation
• NMB dual main bearings
• Supporting SR, SSR, SFR, SUR, SXR multiple ultra high speed modes
• 25T output shaft
• 1-Year Limited Warranty

PRODUCT SPECIFICATIONS

• Type: Digital
• Bearing: Dual
• Motor Type: Brushless
• Gear Type: Metal
• Gear Material: Titanium + 7075
• control system: pulse width control
• working frequence: 1520μs / 330hz
• operating voltage: dc6.0-8.4v
• operating temperature range: -10 to + 60 degree
• operating speed (6.0v): 0.080 sec/60 degrees at no load
• operating speed (7.4v): 0.073 sec/60 degrees at no load
• operating speed (8.4v): 0.065 sec/60 degrees at no load
• stall torque (6.0v): 15.0kg.cm (208.3 oz/in)
• stall torque (7.4v): 18.0kg.cm (250.0 oz/in)
• stall torque (8.4v): 23.0kg.cm (319.4 oz/in)
• potentiometer drive: direct drive
• dimensions: 41.0x20.0x23.3 mm /1.61x0.79x0.92 in
• weight: 42.0g (1.48 oz)
• connector wire length: jr 180 mm
